Getting Started¤

This tutorial walks through a complete Jim run on a toy problem. We inject a non-spinning BBH signal using TaylorF2, fix every parameter except chirp mass (\(\mathcal{M}_c\)) and mass ratio (\(q\)), and sample just those two to keep things fast and easy to visualise.

Setup¤

import logging
import jax

from jimgw.core.single_event.detector import get_H1, get_L1
from jimgw.core.single_event.waveform import RippleTaylorF2
from jimgw.core.single_event.likelihood import TransientLikelihoodFD
from jimgw.core.single_event.transforms import MassRatioToSymmetricMassRatioTransform
from jimgw.core.prior import CombinePrior, UniformPrior
from jimgw.core.jim import Jim

jax.config.update("jax_enable_x64", True)
logging.getLogger("flowMC").setLevel(logging.WARNING)

1. Define injection parameters¤

We use a non-spinning BBH signal with zero tidal deformability. Only M_c and q will be sampled; every other parameter is fixed to the injection value.

gps_time = 1126259462.0

injection_parameters = {
    "M_c": 30.0,
    "eta": 0.24,
    "s1_z": 0.0,
    "s2_z": 0.0,
    "lambda_1": 0.0,
    "lambda_2": 0.0,
    "d_L": 1000.0,
    "t_c": 0.0,
    "phase_c": 0.0,
    "iota": 0.4,
    "psi": 0.3,
    "ra": 1.5,
    "dec": 0.5,
}

2. Set up detectors and inject the signal¤

waveform = RippleTaylorF2(f_ref=20.0)

f_min = 20.0
f_max = 1024.0
duration = 4.0
sampling_frequency = 2 * f_max

ifos = [get_H1(), get_L1()]
for ifo in ifos:
    ifo.load_and_set_psd()
    ifo.inject_signal(
        duration,
        sampling_frequency,
        trigger_time=gps_time,
        waveform_model=waveform,
        parameters=injection_parameters,
        f_min=f_min,
        f_max=f_max,
    )

3. Define the prior¤

We only sample M_c and q, so we only need priors for those two. The prior is defined in the prior space — the space before any likelihood transforms are applied.

prior = CombinePrior(
    [
        UniformPrior(29.0, 31.0, ["M_c"]),
        UniformPrior(0.125, 1.0, ["q"]),
    ]
)

4. Define transforms¤

Likelihood transforms convert parameters from the prior space to the space the waveform model expects. TaylorF2 takes \(\eta\), but we placed our prior on \(q\), so we need MassRatioToSymmetricMassRatioTransform to map \(q\) to \(\eta\) before the likelihood is evaluated.

Sample transforms convert parameters from the sampling space to the prior space. Leaving this list empty means the sampler operates directly in the prior space. You can add transforms here to reparameterise into a space that is easier to sample (e.g. unbounded coordinates, decorrelated parameters), without changing the prior definition.

likelihood_transforms = [MassRatioToSymmetricMassRatioTransform]

sample_transforms = []  # sampler operates directly in prior space (M_c, q)

5. Build the likelihood¤

All parameters that are not being sampled (or transformed) must be baked into the likelihood via fixed_parameters.

fixed_parameters = {
    k: v
    for k, v in injection_parameters.items()
    if k not in ["M_c", "eta"]
}

likelihood = TransientLikelihoodFD(
    ifos,
    waveform=waveform,
    trigger_time=gps_time,
    f_min=f_min,
    f_max=f_max,
    fixed_parameters=fixed_parameters,
)

6. Sample with Jim¤

With only two parameters, we scale everything down from the defaults: fewer chains, fewer loops, and a smaller normalizing flow to keep compilation and runtime short. We also disable parallel tempering (n_temperatures=0) since the 2-D posterior is simple enough not to need it.

jim = Jim(
    likelihood,
    prior,
    sample_transforms=sample_transforms,
    likelihood_transforms=likelihood_transforms,
    n_chains=100,
    n_local_steps=50,
    n_global_steps=100,
    n_training_loops=5,
    n_production_loops=3,
    n_epochs=5,
    rq_spline_hidden_units=[32, 32],
    rq_spline_n_layers=4,
    rq_spline_n_bins=8,
    n_max_examples=3000,
    n_temperatures=0,
)

jim.sample()

7. Inspect the results¤

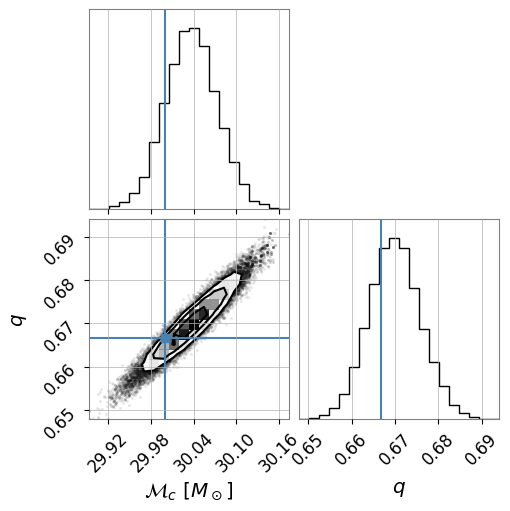

The corner plot shows the 1-D and 2-D marginal posteriors for the two sampled parameters. The dashed lines mark the injected (true) values.

from corner import corner
import matplotlib.pyplot as plt
import numpy as np

samples = jim.get_samples()

fig = corner(
    np.column_stack([samples["M_c"], samples["q"]]),
    labels=[r"$\mathcal{M}_c\ [M_\odot]$", r"$q$"],
    truths=[
        injection_parameters["M_c"],
        MassRatioToSymmetricMassRatioTransform.inverse({"eta": injection_parameters["eta"]})[0]["q"],
    ],
)
plt.show()
